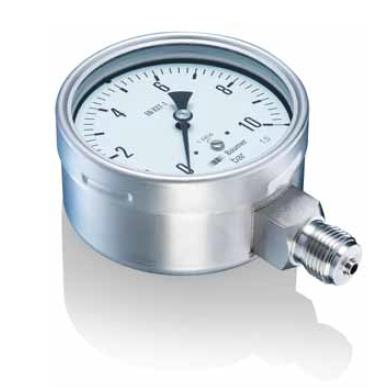

BAUMER MEX5-MEM5 Pressure Gauge
-
Brand:BAUMER
-
Nominal size:100 mm
-
Measurement range:-1 ... 0 to 0 ... 1600 bar
-
Pressure limitation (Ranges ≤ 600 bar), Steady:100% of full scale value
-
Pressure limitation (Ranges ≤ 600 bar), Fluctuating:90% of full scale value
-
Pressure limitation (Ranges ≤ 600 bar), Short time:130% of full scale value
-
Pressure limitation (Ranges > 600 bar), Steady:75% of full scale value
-
Pressure limitation (Ranges > 600 bar), Fluctuating:65% of full scale value
-
Pressure limitation (Ranges > 600 bar), Short time:100% of full scale value
-
Accuracy:Class 1 (according EN837-1)
-
Protection rating:IP 65 (EN 60529)
-
Process Connection:Stainless steel 1.4404 (AISI 316L)
-
Bourdon tube:Stainless steel 1.4404 (AISI 316L)
-
Case:Stainless steel 1.4301 (AISI 304)
-
Bezel ring:Stainless steel 1.4301 (AISI 304)
-
Movement:Stainless steel
-
Window:Instrument glass
-
Window gasket:Elastomer
-
Dial:Aluminium, white
-
Pointer:Aluminium, black
-
Temperature (Ambient):-20 ... +70°C
-
Temperature (Medium):-40 ... +200°C (not filled)
-
Temperature (storage):-40 ... +70°C
-
Thermal drift:± 0.4% F.S. / 10 K (reference : 20°C)
-
Safety:S1 according EN837-1 (Pressure gauge with blow-out device)
Description
BAUMER MEX5 Industrial Pressure Gauges
Main Features
- For corrosive gasses and liquids
- Class 1 according to EN 837-1
- Wetted parts Stainless steel (MEX) or Monel (MEM)
- Lloyds Register Approval
- Option : liquid-filled for applications with pulsations or vibrations
- Option : case material 1.4404 (316L) for aggressive atmosphere
Applications
- Food & Beverage
- Laboratory & Medical
- Oil & Gas / Chemical
- Water & Waste water
- Energy
- Transportation & Logistics
- Machinery
