Profile

Petrotek Sdn. Bhd. exclusively distributes and supplies world renowned process control instrumentations and precision pneumatic solutions catering to diverse manufacturing industry as well as oil and gas sector nationwide. Located strategically from The Highway Centre in Petaling Jaya, Selangor, Petrotek is a trusted brand way back since 1977.

• Temperature Switch
• Bimetallic Thermometers
• RTD Temperature Transmitter
• Thermowell
• Pressure Gauge (Bourdon Tube / Capsule / Diaphragm)
• Pressure Gauge with Electrical Contact
• Pressure Switch
• Pressure Transmitter
• Instrument Gauge Valve
• 3 Way and 5 way Manifold Valve
• Magnetic Level Gauge
• Magnetostrictive Level Transmitter
• Armored Level Gauge
• Sight Flow Indicator
• Specific Gravity Analyzer
• Frequency Sweep Level Switch
• Conductivity Sensors
• Precision Pressure Regulators
• Pneumatic Pressure Transducers (I/P Converters)
• Pneumatic Relays
• Pneumatic Volume Boosters
• Compression tube fittings
• Pipe Fittings
• Ball Valves
• Needle Valves
• Metering Valves
• Pressure Relief Valves
• Plug Valves
• Check Valves
• Excess Flow Valves
• Bleed Valves
• Purge Valves
• Globe Valves
• Double Block & Bleed Valves
• High Pressure Ball / Needle / Check / Metering Valves
• High Pressure Relief Valves
• 2/2 way Solenoid Valves
• 3/2 way Solenoid Valves
• Piston Valves (pneumatic actuated)
• Automatic Drain Valves

The Baumer Group is leading at international level in the development and production of sensors, shaft encoders, measuring instruments as well as components for automatic image processing. As an owner-managed family business, we employ about 2500 workers worldwide in 36 subsidiaries and 18 countries. Our customers include small, highly specialized plant and machine construction companies, large industrial enterprises and groups of companies operating at global level. The best in their field. In Europe and throughout the world. For over 60 years.

The MEX5-MEM5 pressure gauges are intended for process industries such as chemical,  petro-chemical, energy or gas industries and have been designed to satisfy requirements to operate in aggressive environments.

• Measurement range: MEX: -1...0 to 0...1600 bar    MEM: -1... 0 to 0...600 bar
• Gauge working temperature: -20...70°C
• Accuracy: Class 1.6 (Class 2.5 for 0.6 bar filled and for 0.4 dry)
• IP rating IP 65 (EN 60529)
• Case and bezel ring: 1.4301 (AISI 304) st. steel, bayonet lock type. With blow-out disc at the top of the case.
• Movement: Stainless steel with zero and over-range stops
• Window: Glass, 4 mm thick
• Dial: Aluminium alloy, black graduations and figures on white background.

Baumer CombiSeries is nominated this year for the FoodTech Innovation Award and is thus one of altogether seven nominated product innovations.

The nominated CombiSeries temperature and pressure gauges are easy-to-handle measuring instruments for safe and convenient process control. One of their outstanding features is the newly developed CombiView display, which works like a stoplight. Time-consuming, detailed process analysis is no longer required because a clear and noticeable signal prompts the user to perform testing.

Based on the novel frequency-sweep technology, the level switch is suitable for measuring the levels of viscous or dry substances as well as liquids with a repeatability and hysteresis of ± 1 mm and a typical response time of 0.2 seconds. As the LBFS is unaffected by flow, turbulence, bubbles, foam, and suspended solids, it is particularly suitable for level detection in processes generating those.  A fibre gasket and an M12 plug or 5-metre cable are included with the measuring device. With the tube functioning as an adjustable extension rod, the LBFS can be adjusted to changing levels. This makes it possible to use the LBFS as a float-type level switch in applications such as automatic dosing systems as well as for phase separation in the petroleum industry, hydraulic systems, and water/wastewater treatment.

Baumer PBM4 pressure transmitter offers an attractively priced solution for hydraulic applications. The PBM4 has a multitude of uses in manufacturing plant automation or vehicle and machinery production. This compact, robust pressure transmitter also displays its strengths in harsh environments, in limited spaces and mobile hydraulics. The different versions have a multitude of uses in hydraulic brake and drive systems between 25 and 1000 bar. The PBM4 handles high oil and ambient temperatures and large temperature fluctuations. The thin film measuring cell is welded directly to the process connection. A separate seal is therefore unnecessary, giving the PBM4 extremely high resistance, with up to double overpressure and ten times greater bursting pressure in the common measuring ranges. An optional damping element is available. High EMC, impact and vibration protection and a IP67 protection rating round out the reliable features of the PBM4.

BAUMER TBHI Bimetalthermometer, heavy industry version are intended for corrosive gasses and liquids. Widely used in oil and gas/chemical industry due to the corrosive properties from the process. Also used in water & waste water and aggressive environment.

• Nominal size 100, 130 mm
• Temperature ranges -70 ... 600 °C / -100 ... 1100 °F
• Accuracy : According to EN 13190 up to 250 °C:   class 1 , above 250 °C: class 2 (class 1 on request)
• Protection rating IP 68 (EN 60529)
• Immersion tube Stainless steel 1.4571 (AISI 316Ti)
• Case Stainless steel 1.4301 (AISI 304)
• Bezel ring Stainless steel 1.4301 (AISI 304)
• Window : Instrument glass
• Window gasket : Elastomer (silicone)
• Dial Aluminium, white
• Pointer Aluminium, black, adjustable

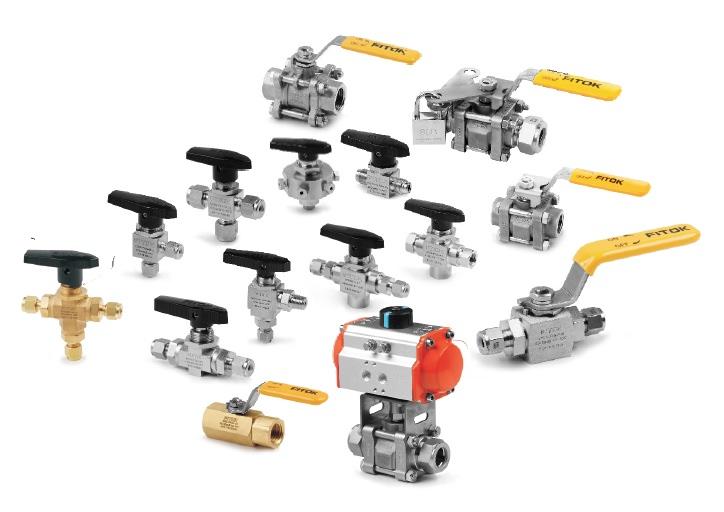

Stainless steel 316 ball valves available

• Trunnion ball valves
• 3 Piece Ball Valves for low and high pressure with fire safe design.
• One-piece Instrument Ball Valves
• Bar Stock Ball Valves
• Hex Bar Stock Ball Valves
• High Performance Ball Valves

Features:

• Available in Monel, SS 316, or Carbon Steel

• Optional locking device available
• NACE MR0175 available
• Manufactured in accordance to BS EN 10204 3.1

• Connections: Tube, Pipe, or Weld


Founded in 1998, FITOK Group is an industry-leading developer and manufacturer of superior high-quality instrumentation valves and fittings.
■ General Instrumentation Valves and Fittings
■ High Pressure Valves and Fittings
■ Specialty Gas Applications
FITOK is an ISO 9001:2008 certified company and its products are TA-Luft, ABS, ASTM F1387, TPED, GOST, RTN and CRN certified.

Machined from custom made stainless steel 316 and designed to handle up to 60,000 psi or 4137 bar. Coned-and-threaded connection. Metal-to-metal seal provides perfect leak tight service from critical vacuum to high pressure. Anti-vibration components available on request. Every fitting is stamped with size, material and heat code.

Sizes range from 1/16" to " and 2 mm to 38 mm. Diverse materials and configurations are available.
Precision machined components ensure perfect deformation of the ferrules and tubing.
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.
Female nut threads are silver-plated to reduce the friction against the body threads.
Radius junction design with elbows provides smooth flow path.Every fitting is stamped with size, material, and heat code.
Fittings are easy to disconnect and re tighten.
